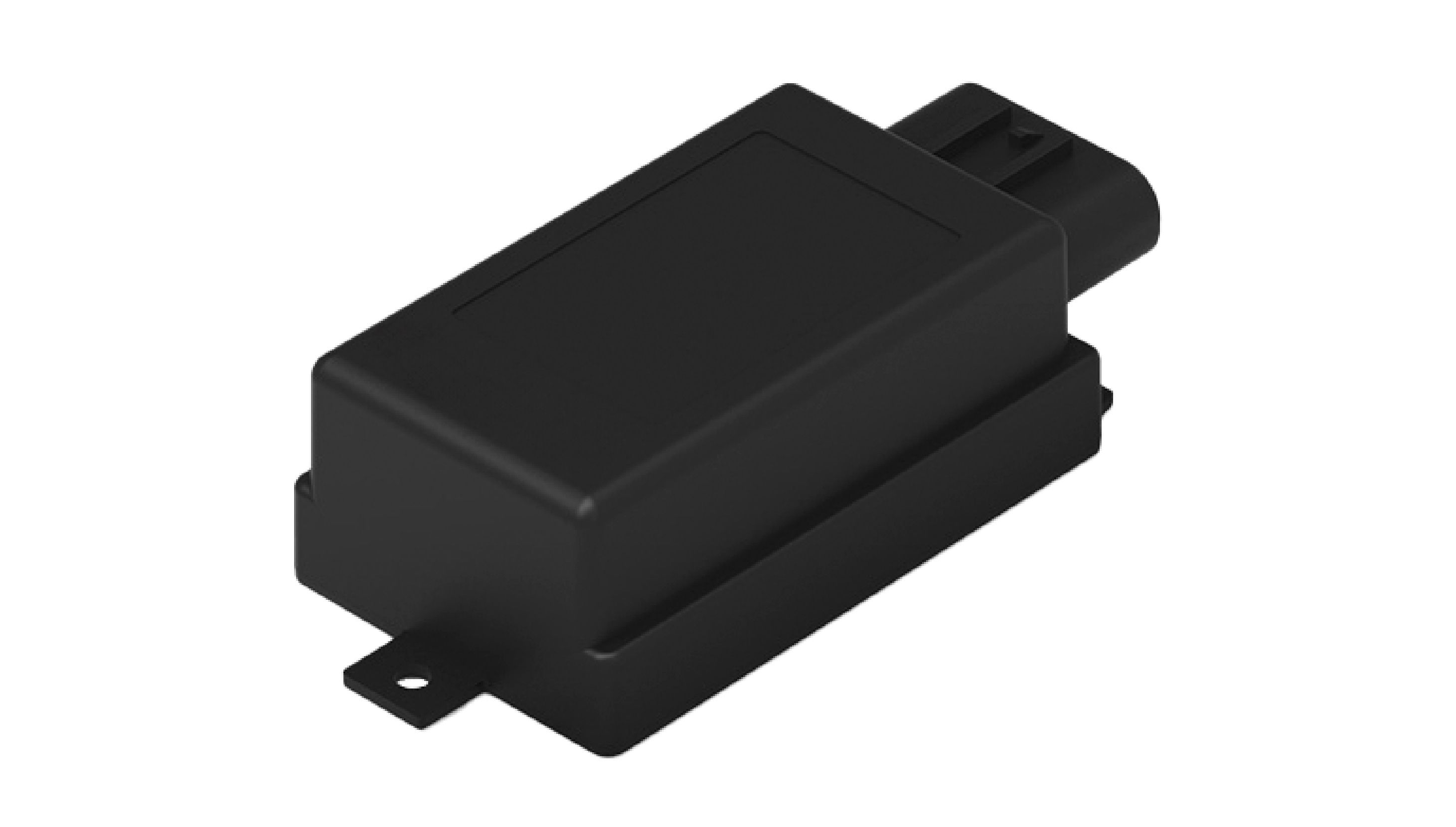

ATOM TELEMATICS UNIT BY IDNEO
The Idneo ATOM telematics unit platform is extremely compact, robust and versatile, very cost-effective and with very low power consumption. It is intended for use in vehicles such as motorcycles, scooters, ATVs or connected electric bicycles. The ATOM TCU is 100% developed by Idneo.
Fitted with overmolded antennas and connectors, as well as extensive validation, this compact telematic unit is robust enough for the most demanding environments. It features state-of-the-art telematic services: remote diagnostics, maintenance and remote control, location and anti-theft services, EV battery management and more. It can also enable connectivity with an infotainment panel, and even provide Over-the-Air SW updates to all your vehicle ECUs. Through its internal omnidirectional antennas, ATOM TCU supports LTE, Bluetooth and GNSS, and features CANFD, 6-axis accelerometer, internal battery and IP67 protection through a laser welding process.
Technical Features:
- Ultra-compact, low cost IP67 telematics unit platform
- 4G LTE CAT-M1, NB-IOT and 2G connectivity
- 1x CAN-FD
- 1x USB 2.0
- Multiple Digital I/O
- Bluetooth Low Energy
- Internal Lithium back-up battery (400mAh)
- Stand-alone GNSS chipset (GPS/GLONASS/Galileo/Beidou/QZSS) Concurrent GNSS and LTE connectivity
- Very low power consumption: down to <500uA, preserving its wake-on-network capabilities in eDRX mode
- 6-axis accelerometer and gyroscope
- Up to 256MB user data flash memory
- Wake-On-CAN, HW I/O, Accelerometer, BLE or Network (SMS, IP connection…), Samples available now in SOP from 2023
- Dimensions: 65x40x25mm (excluding connector and fixations)
