BMS-D1 'IDIZAN'

Home

/

ventures

/

battery management system

/

bms idizan

Distributed High Voltage BMS

INTRODUCTION

Idneo’s DISTRECO is a high-accuracy distributed BMS that can manage several battery slaves with a maximum of 18  cells per slave and total voltage up
to 1500 V. The safety level of the BMS is ASIL-C rated with same actuation mechanism of the contactors and Pyro-switches.
Open API interface to include custom battery SOC, SOH or SOP algorithms.



APPLICATIONS e-Mobility

Energy Storage Systems
High voltage drive system
Advanced stationary battery

KEY FEATURES

Advanced Battery Management:

  • Thermal Runaway detection support: H2 sensor, internal multigas, Pressure sensor
  • Secure Element compliant to Battery Passport regulation

Open BMS SW environment:

  • Open interface for SoX custom development
  • Configurable main App to adapt it to the needs
  • Data available after integrity checks

Acquisition with Safety:

  • Acquisition data received with ASIL-C rated components and communication
  • Deterministic and real-time management of data and tasks
  • Safety redundant check for all sensors (Voltage, Current and temperatures)

Advanced Peripheral Control:

  • Contactor control with safe actuation and integrity diagnostics 1 channel of 2A nominal, 3A peak (For system disconnection purpose)
  • 1 channel of 0.5A (For pre-charge contactor circuit)
  • 1 channel for Heater/Cooling control up to 4A
  • 1 channel for External supply Voltage up to 1A

Connectivity:

  • CAN / CAN-FD interface
  • RS-485 - MODBUS
  • Interlock master based on PWM
  • Heater Control based on PWM
  • UART service connectivity
  • Neopixel output for HMI

SPECIFICATIONS

  Communication Interface    -1 CAN/CAN-FD bus, up to 2Mb/s
  - MODBUS RS-485 (Optional)
  Memory / Storage  Integrated EEPROM up to 256KB
  Battery Passport  Integrated Secure Element (EU regulation compliant)
  HMI  - 3 Internal LED’s  - 2 Internal Push-buttons
  Sensors  Crash Detection:
  - 1 External Airbag signal
  - 1 Internal Accelerometer
  Thermal runaway detection support:
  - Internal Pressure sensor
  - 1 Internal Multigas sensor
  - 1 External Gas sensor (Electrolyte vapor detector)
  Operating Temperature   -40ºC to +85ºC
  Weight  ~32g
  Size  150 x 120mm



BJB SPECIFICATIONS

  Current measurement  Up to 2 External Current sensors
  (Shunt resistors or Hall sensors)
  Current Measurement Resolution                                  16bit
  Current Measurement Error         < +-0.5%
  ASIL-C Rated                                         Redundant analog front ends
  High Voltage Measurements       Up to 1500V
  Isolation  Isolation with respect to Earth measured
  High Voltage Readings  Up to 6 HV nodes
  Temperature Readings  Up to 3 External NTCs
  Operating Temperature  -40ºC to +85ºC
  Size  150 x 120 mm

CMU SPECIFICATIONS

  Voltage Range  3 to 76 V
  Voltage Measurement Resolution                                 < 1 mV
  Temperature Reading Resolution     < 0,5 ºC
  Cell Voltage Measurement Range                                  -3V to 5V
  Cell Balancing       Passive balancing up to 300mA peak
  Power consumption  <20 uA in deep sleep mode
  <115 uA in sleep mode
  <15 mA in full power mode
  Number of Cells  4 to 18 cells per slave
  Operating Temperature  -40 to +85ºC
  Size  110 x 60 mm
  Temperature readings  -Up to 4 redundant (or 8 standalone) external NTCs for Cell monitoring
  - 1 internal Balancing temperature measurement

SPECIFICATIONS

  Power Supply  12/24Vdc
  Current resolution / precision                                 +- 0.1mV
  Temperature Reading                                           Up to 6 external auxiliary NTC
  Temperature Reading Resolution                             <0.5ºC
  Output control                                                      - Up to 4 channels of 2A nominal, 4.5A peak (ASIL-C compliant)
  - 1 channel of 2A nominal, 3A peak
    (For system disconnection purpose)
  - 1 channel of 0.5A (For pre-charge contactor circuit)
  - 1 channel for Heater/Cooling control up to 4A
  - 1 channel for External supply Voltage up to 1A
  Auxiliar control  Ignition signal detection
  Interlock generator, PWM based

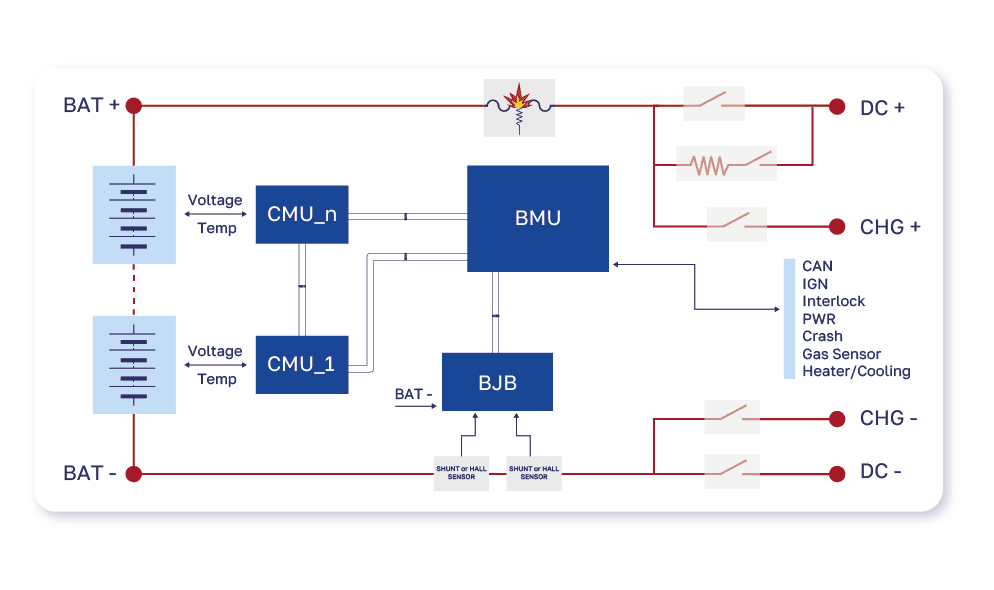

ARCHITECTURE





OPEN BMS



DIAGNOSTICS



DATA MANAGEMENT



RTOS

  Application SW:

  Custom SoX Algorithms, Battery Stateme Machine, Charging Profiles, Custom Communications (CAN DBc)

  L2: Main State Machine & Safe Operating Area (SoA)
  L1: Acquisition & Data Integrity, Diagnostics
  L0: Low level Libraries & Drivers
