Idneo Eco Battery

Please accept Advertising cookies to watch this content.

⋯



At Idneo we have professionals specialized in all areas, from industrial design to BMS development.

Our innovation team has taken a step forward by creating a swappable battery for motorcycles and Light EV.

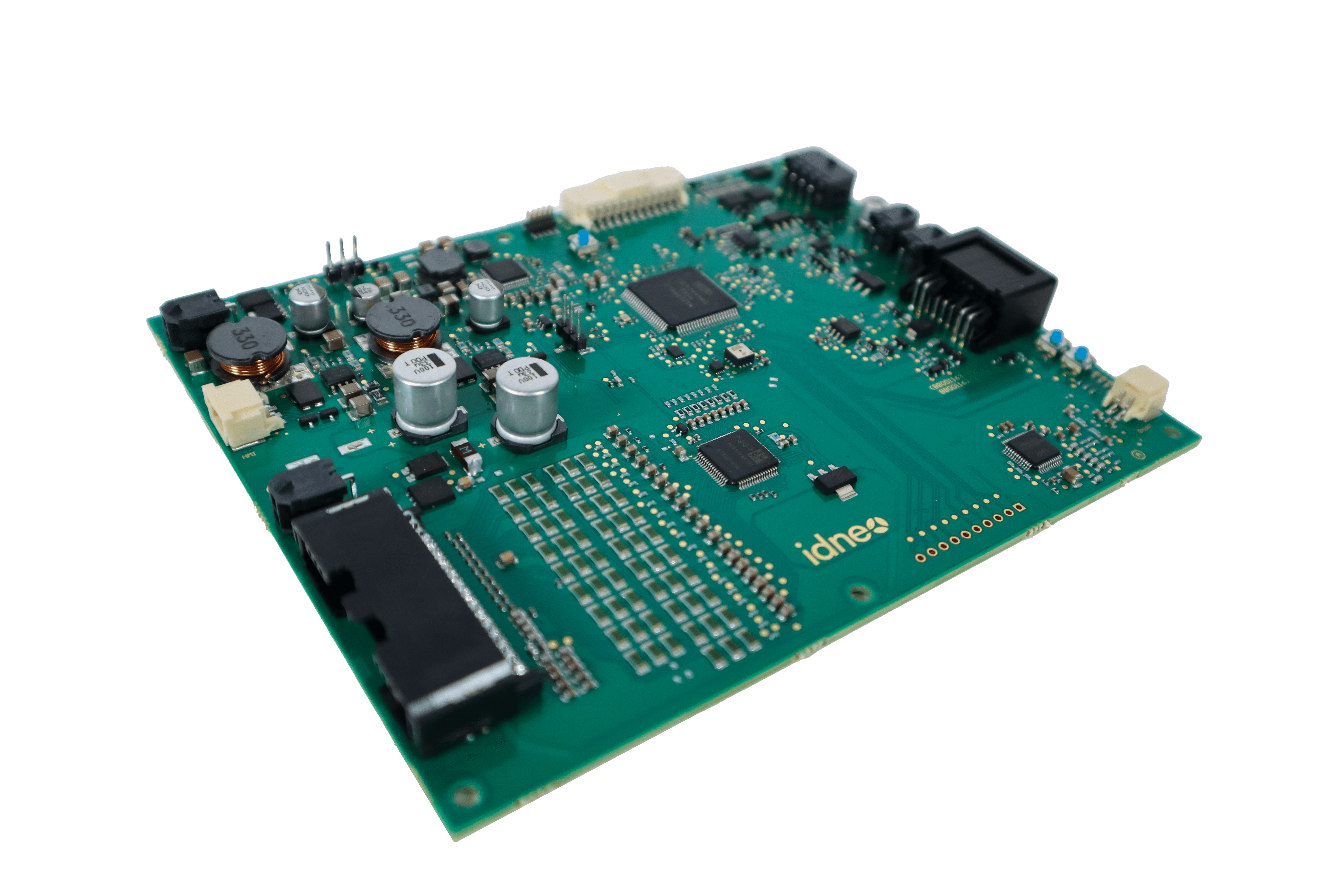

Centralized BMS for 18 Cells

INTRODUCTION

Idneo’s Eco Battery is a high accuracy centralized BMS system that can manage the control of a maximum of 18 battery cells of different chemistries and all the components surrounding it, including shunt reading, main and precharge contactor control, pyro-switch among others.
The safety level of the BMS is ASIL-C rated with same actuation mechanism of the contactors and Pyro-switches.
Open API interface to include custom battery SOC, SOH or SOP algorithms.

APPLICATIONS - e-Mobility

  • LEV (light electric vehicle up to L7 quadricycle)
  • Swapable battery
  • Advanced stationary battery

KEY FEATURES

Open BMS Concept:

  • Open interface for SoX custom development
  • Configurable main App to adapt it to the needs
  • Data available after integrity checks

Acquisition with Safety:

  • Acquisition data received with ASIL-C rated components and communication
  • Safety redundant check for all sensors (Voltage, Current and temperatures)
  • Deterministic and real-time management of data and tasks

Advanced Peripheral control:

  • Contactor control with safe actuation and sensing
  • Integrity of the contactor Coil check before activation
  • Complete activation of the contactors verification

Connectivity:

  • CAN 2.0 interface
  • Interlock master based on PWM
  • Heater Control based on PWM
  • UART service connectivity
  • Neopixel output for HMI

SPECIFICATIONS





 Voltage Range  3 to 60 V
  Interfaces + HMI  CAN Bus, Ignition, Interlock, PWM (Thermal Management), Pressure Sensor, Thermal Runaway Sensor
  Number of Cells  From 4 to 18
  Current Measurement Resolution  < 1 uA
  Voltage Measurement Resolution  < 1 mV
  Temperature Reading Resolution  < 0,5 ºC
  ASIL-C Rated  According to ISO- 26262
  Temperature readings  6 redundant Cell Measurement
  6 auxiliary non-redundant
  1 Balancing circuit
  1 PCB measurement
  6 NTC measurement
  Cell Voltage Measurement range  -3V to 5V
  Cell Balancing  Up to 300mA peak
  External Heater Control  External heater up to 5A
  Operating Temperature   -20ºC to +85ºC
  Storage Temperatura  -40ºC to +85ºC
Size  150 c 120 mm
Wight  ~32g



ARCHITECTURE





OPEN BMS



DIAGNOSTICS



DATA MANAGEMENT



FREE RTOS

  Application SW:

  Custom SoX Algorithms, Battery Stateme Machine, Charging Profiles, Custom Communications (CAN DBc)

  L2: Main State Machine & Safe Operating Area (SoA)
  L1: Acquisition & Data Integrity, Diagnostics
  L0: Low level Libraries & Drivers
